CJD Racing Nissan Armada / I Infiniti QX56 QX80 Bolt on Long Travel Suspension Kit

CJD Racing Nissan Armada / I Infiniti QX56 QX80 Bolt on Long Travel Suspension Kit -Direct Bolt on Kit

*Built To Order, Lead Times Vary*

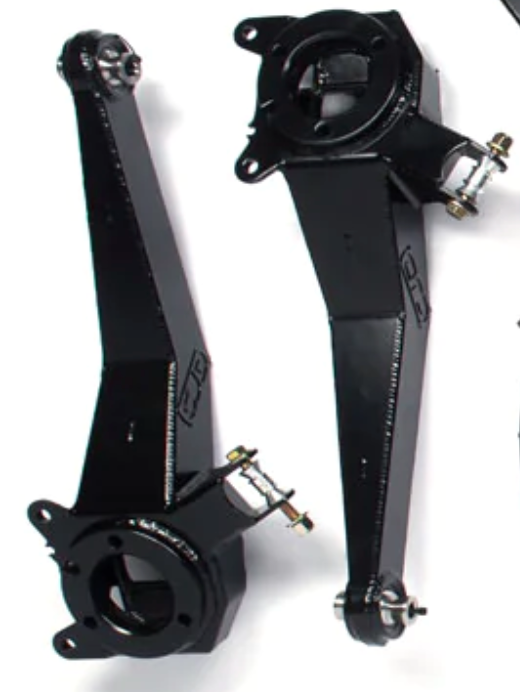

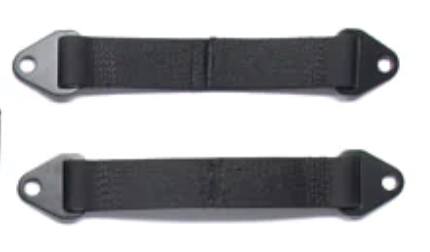

This kit is a true bolt-on long travel kit. It’s fully CAD designed with 3/16” and 1/8” boxed plate. The kit is 3" wider per side for a total of 6" wider front track width. Compatible with both 2WD and 4WD. Bolts up to the stock spindle. Cycles 14" wheel travel. This kit is meant to be paired with our custom made bolt-on 2.5" Radflo coilover. Option to run with the 2WD 4" lift spindle kit. The top mount does need to be welded to the frame for the limit straps to work. 4WD comes with a pair of 300M axles to complete the kit. (Axles only work with OEM CV's) 2WD lift spindle option available.

Options: Boxed UCA that works with aftermarket shock hoops. Add this option to the notes at check out if this option is needed.

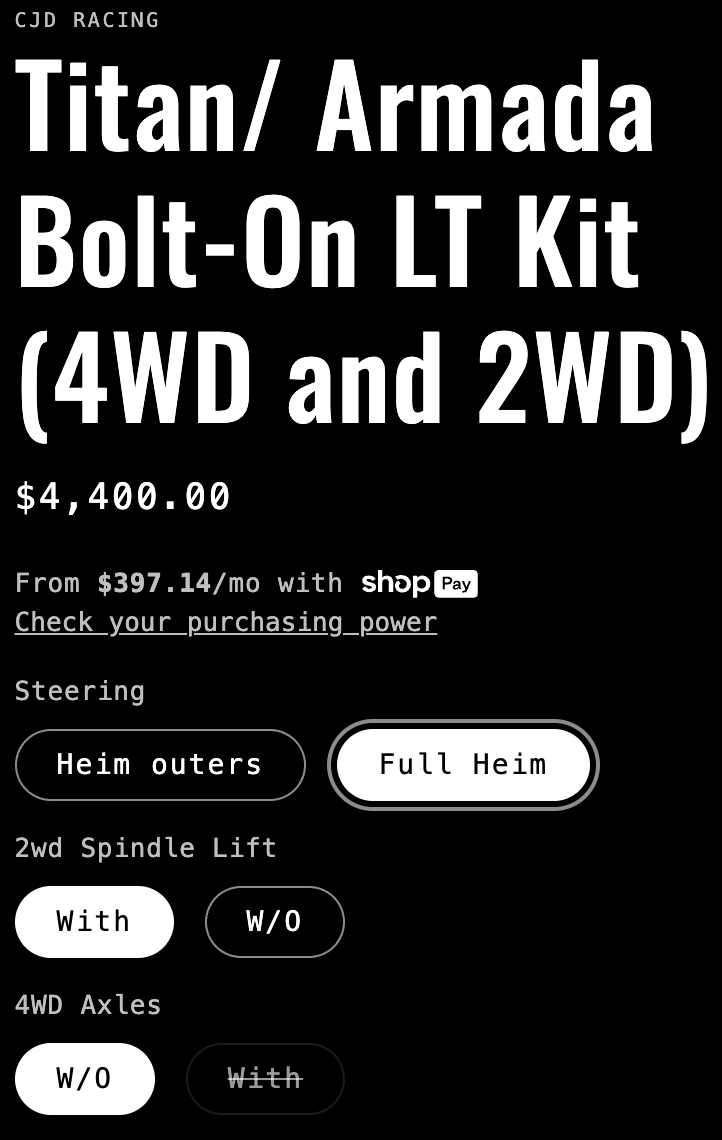

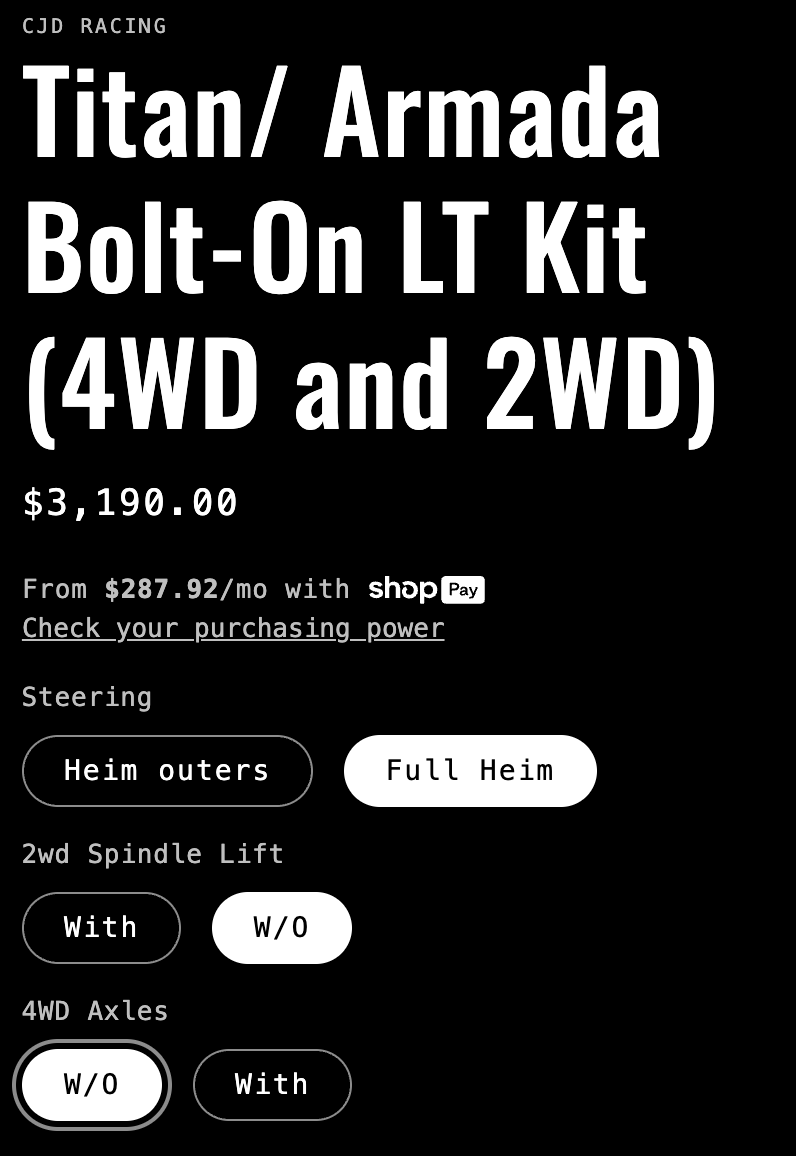

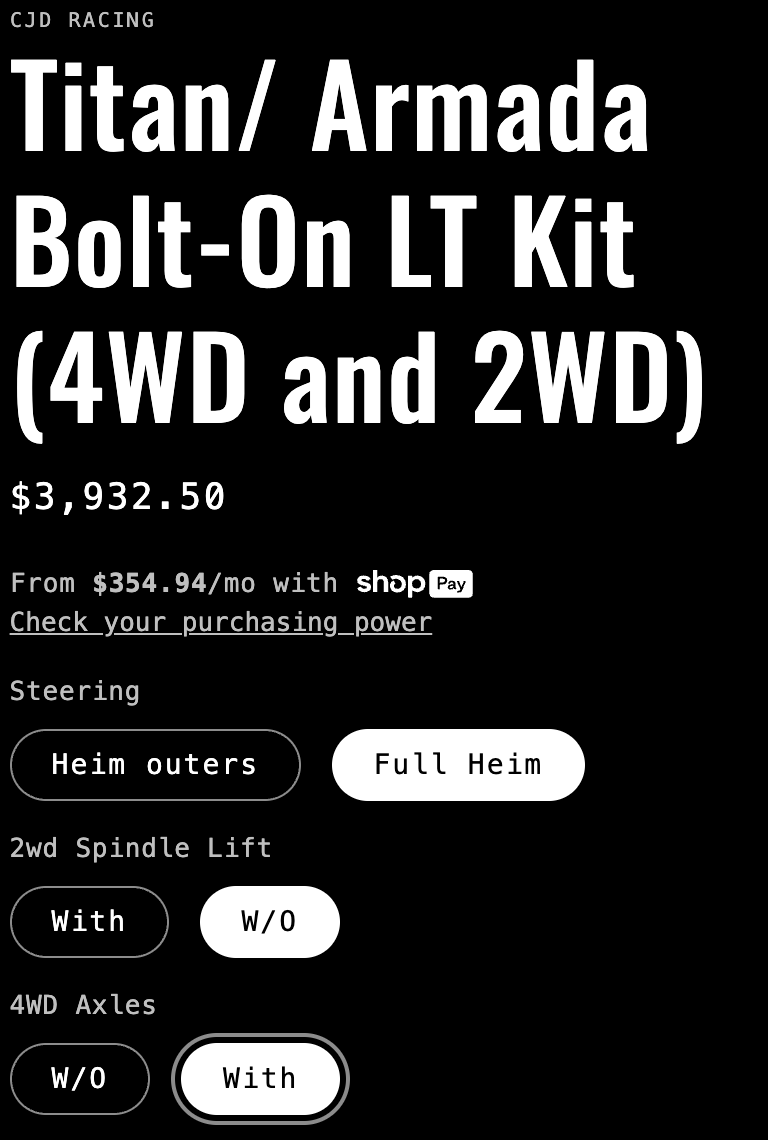

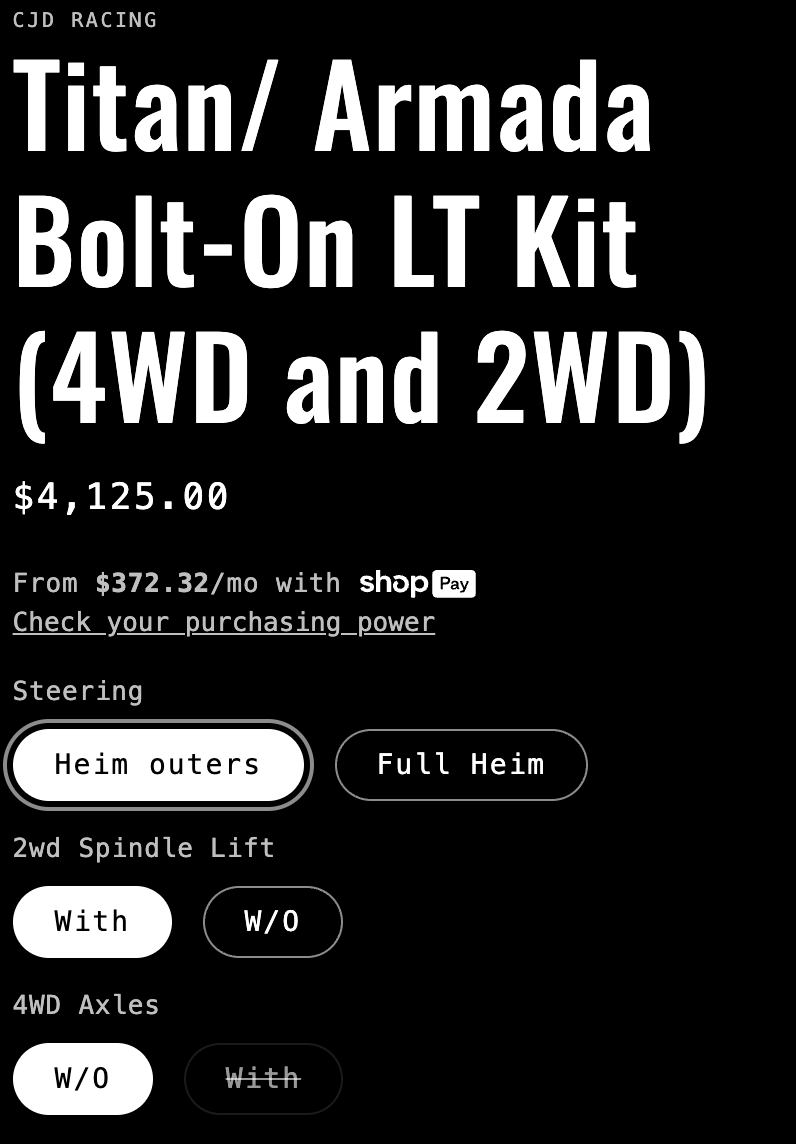

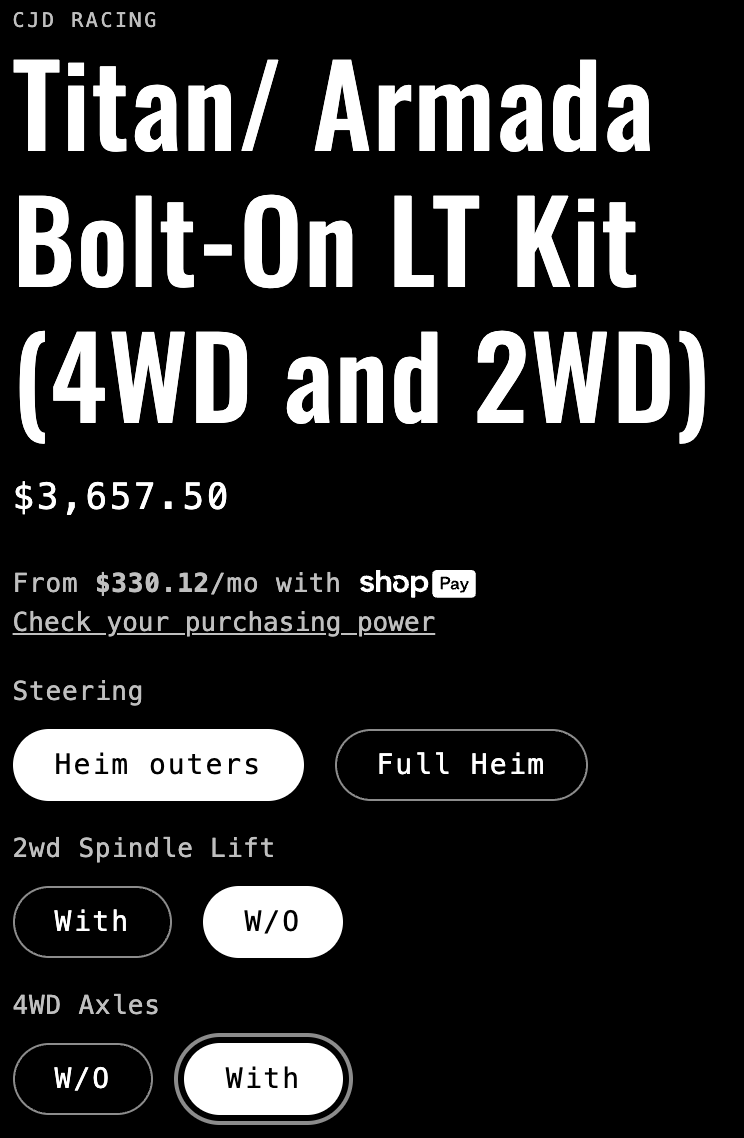

Options: Select Heim Outer only, Full Heim, Heim Outer and 2WD 4" Spindle Lift, Full Heim and 2WD 4" Spindle Lift, Heim Outer and With 4WD axle or Full Heim with 4WD axle.

Applications:

2017 - 2024 Nissan Armada

2011 - 2024 Infiniti QX56 and QX80

Shipping cost is NOT included and will be billed separate

Shocks are NOT included and must be selected separate

Front End Kit only, rear suspension options are separate

Specs:

Wheel Travel: 14” Minimum Rim Size: 17” Maximum Tire Size: 37”

Track Width: 3” Wider Per Side

Coilover: Custom Radflo 2.5” with Reservoirs Sold Separate

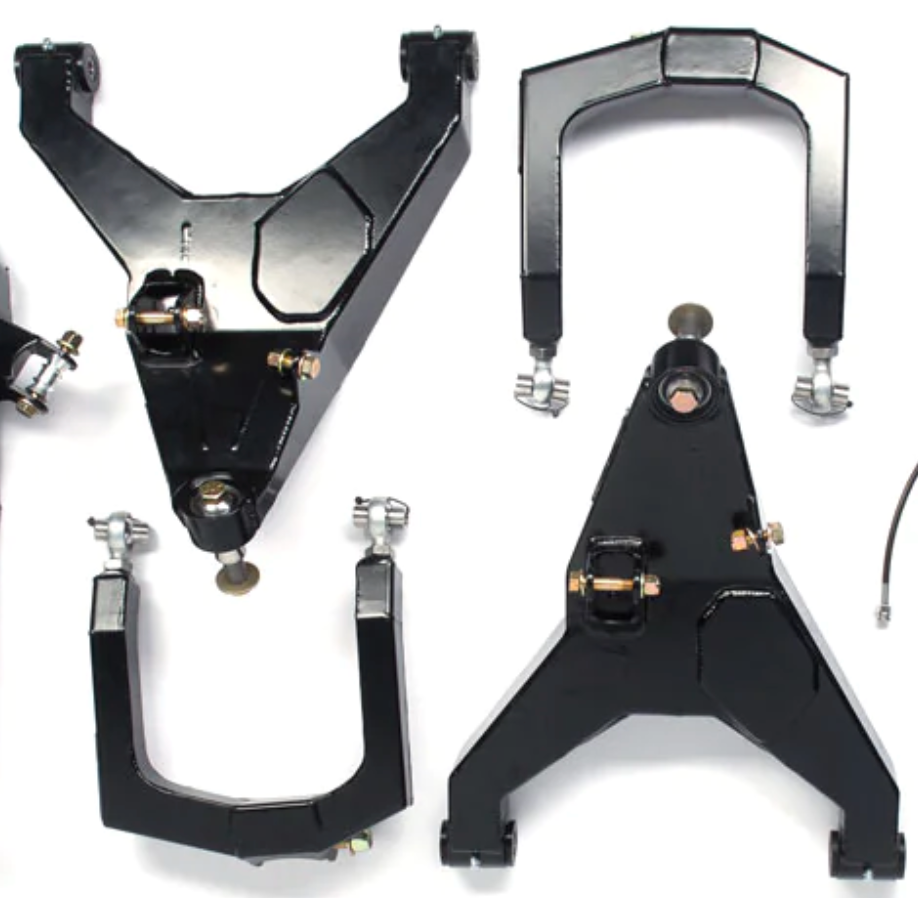

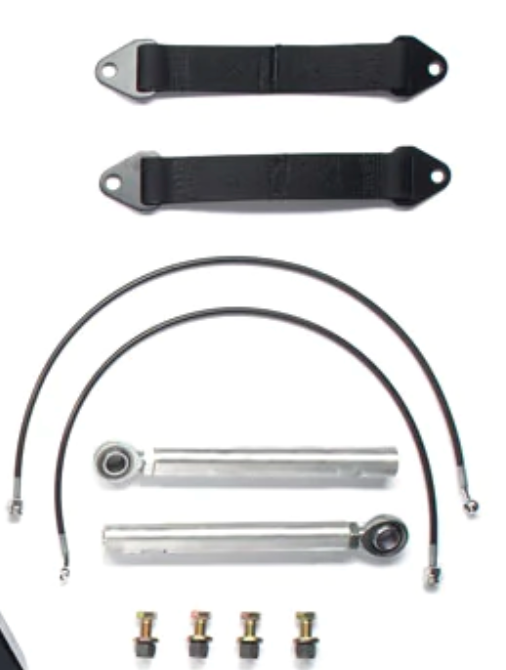

What’s Included:

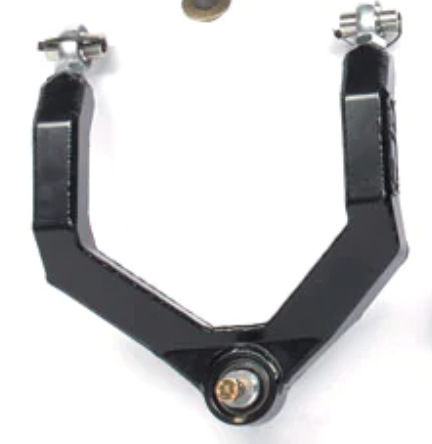

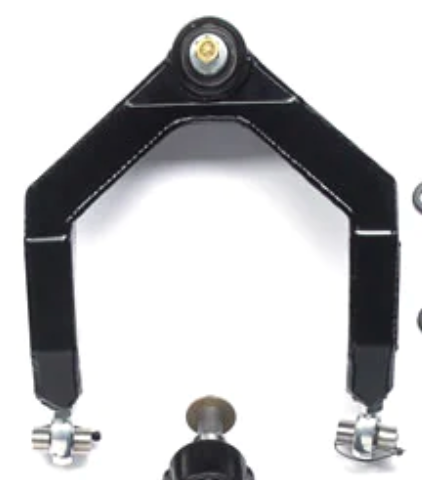

Boxed UCA

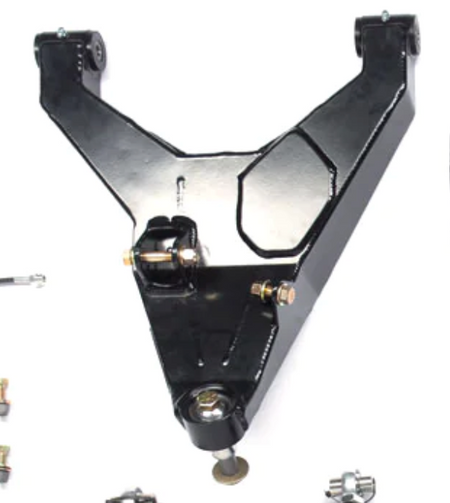

Boxed LCA

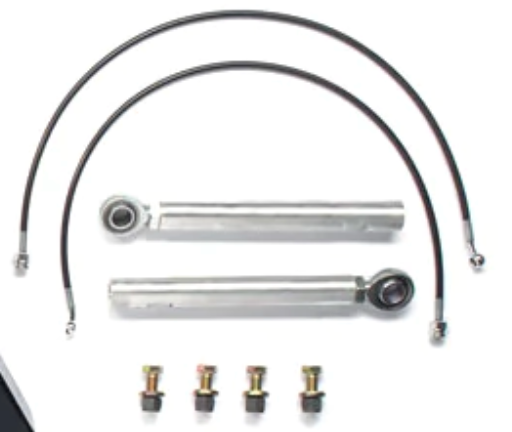

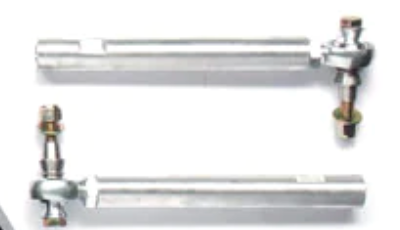

Billet Tie Rods

Grade 8 Hardware

DOT Stainless Braided Brake Lines

Black Powder Coat

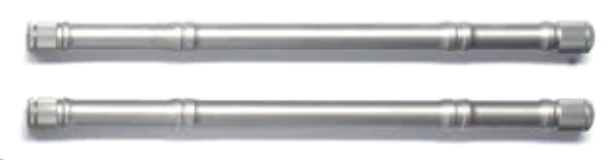

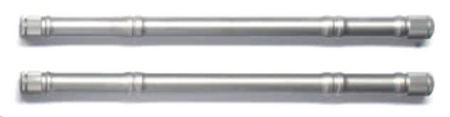

Extended 300M Axles (4WD Kit Only) (Axles Only Work with OEM CV’s)

Stainless Misalignments

All Needed Heims and Uniballs
