Dirt King Performance Front Lower Control Arms Nissan Y62 Armada / Infinity QX56 QX80

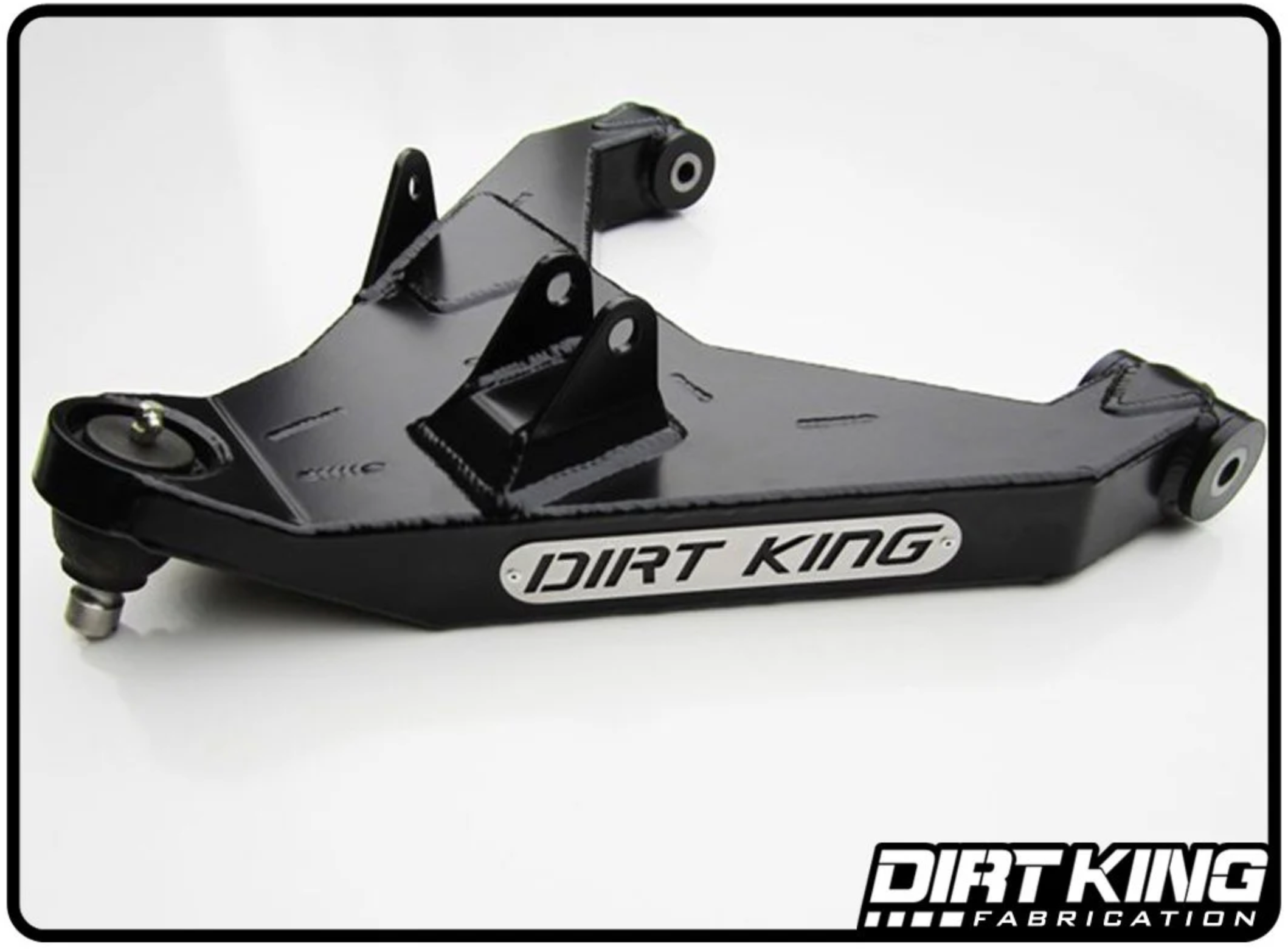

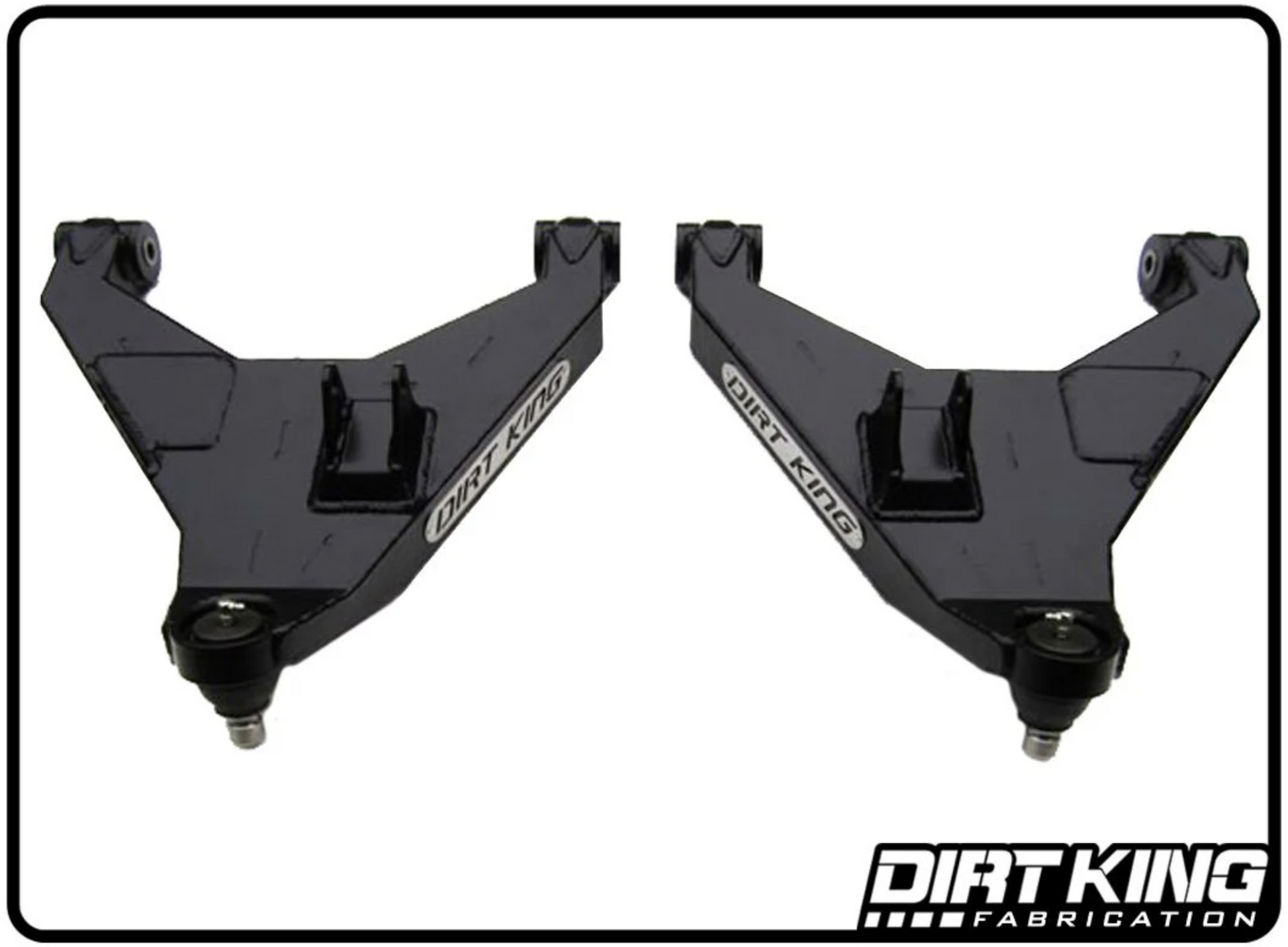

The Dirt King performance lower control arms are remarkably stronger and have improved geometry compared to the factory lower control arms. We have corrected the ball joint angle reducing stress and wear on the joint. For the 4WD models we eliminated axle rub by improving the shock placement allowing for more clearance between the axle and the shock. We have also upgraded the from the weak factory ball joints to heavy duty Moog ball joints. For the inner pivots we replaced the soft factory bushings with our custom machined delrin bushings. There are several major advantages of using delrin bushings compared to the softer bushings such as stock or urethane. The delrin bushings eliminate forward and backward movement of the lower arm along with allowing for a freer range of upward and downward motion unlike the injected factory bushings. They are also tabbed to accommodate for bump stops and limit straps to be used if you choose. The arms come fully assembled and include detailed instructions for easy installation.

• Track Width: Stock
• Maximum Tire Size: 33”
• Maximum Backspacing: 5.25”
• Minimum Rim Size: 17”
• Compatible with factory sway bar: No
• Bump Stop Size: 2.0 x 2.0
• Coil Over Shock Size: OEM replacement coil overs

• Boxed plate lower control arms
• Delrin bushings
• Grease fittings
• Moog ball joints
• Brushed stainless steel logo plates
• Zinc plated inner bushing sleeves
• Durable black powder coat
• Dirt King sticker pack
• Installation instructions

Features

• CAD designed

• Formed steel bushing gussets
• Internally ribbed with extrusions for weight reduction
• Preassembled for fast installation
• Grease fitting ports for easy servicing
• Professionally MIG welded
• Proudly made in the USA

Installation
These arms do not use the factory front sway bar and must be used with coil overs that have a spherical lower rod end. The use of hydraulic bump stops require cutting and welding to the frame.  You remove the front sway bar to maximize travel.

Compatibility

2021 - 2024 Nissan Armada 2WD / 4WD

2017 - 2020 Nissan Armada 2WD / 4WD

2012 - 2024 Infiniti QX56 / QX80

2004-2015 Nissan Titan 2WD / 4WD
2016-2023 Nissan Titan (Non-XD) 2WD / 4WD
2005-2006 Nissan Armada 2WD / 4WD
2004 Nissan Pathfinder 2WD / 4WD
*This suspension will not work with the 2016 or newer Titan XD models.
