Dirt King Long Travel Suspension Kit Nissan Y62 Armada / Infinity QX56 QX80

Name: Dirt King Long Travel Suspension Kit Nissan Y62 Armada / Infinity QX56 QX80
Brand: Campsite204
Price: 3298.99 USD
Availability: InStock

In stock

$3,298.99 inc. VAT

Long Travel Kit 2WD 4WD with Axle Shafts 4WD with Compete Axle Assemblies

Product variants

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Wheel Travel: 13.25”
Amount of Lift: 0-4”
Track Width: 3” wider per side
Maximum Tire Size: 35”
Maximum Backspacing: 4.75”
Minimum Rim Size: 17”
Bump Stop Size: 2.0” x 2.0” (view spec sheet)
Coil Over Shock Size with Shock Hoop Kit: 2.5” x 8” (view spec sheet)
Coil Over Shock Size: King OEM replacement shocks with the options below
- Internal droop stops removed
- +1” rod ends

Shocks
For the best performance and to achieve the full 13.25” of travel you must purchase our spec built shocks or have them custom built based on our coil over spec sheet. For direct bolt on applications King OEM replacement coil overs can be installed, but you will have to delete the factory coil bucket and build a custom shock hoop to use our spec built shocks. The King OEM replacement coil overs must have the internal droop stops removed and 1” rod end extensions added. These shocks will allow for 10” of travel. Both pairs of shocks will work with 2WD or 4WD models. For more dampening the suspension system has the ability to use bump stops along with the coil overs. The use of bump stops will also require welding and modifications to the frame.

Wheel Travel
When shopping long travel kits many consumers tend to focus just on travel numbers. This is the reason many companies claim inaccurate numbers or don’t disclose the amount of work involved to achieve these numbers. Our goal is to build a suspension system with the highest amount of wheel travel without requiring major modifications to the vehicle or compromising its overall drivability.

Tire Info
When using 35” tires with this kit modifications to the wheel well will need to be made. The firewall pinch weld will need to be folded over and front cab mount needs to be shaved to avoid contact while turning. The upper wheel well will also need to be modified to avoid contact at full bump.

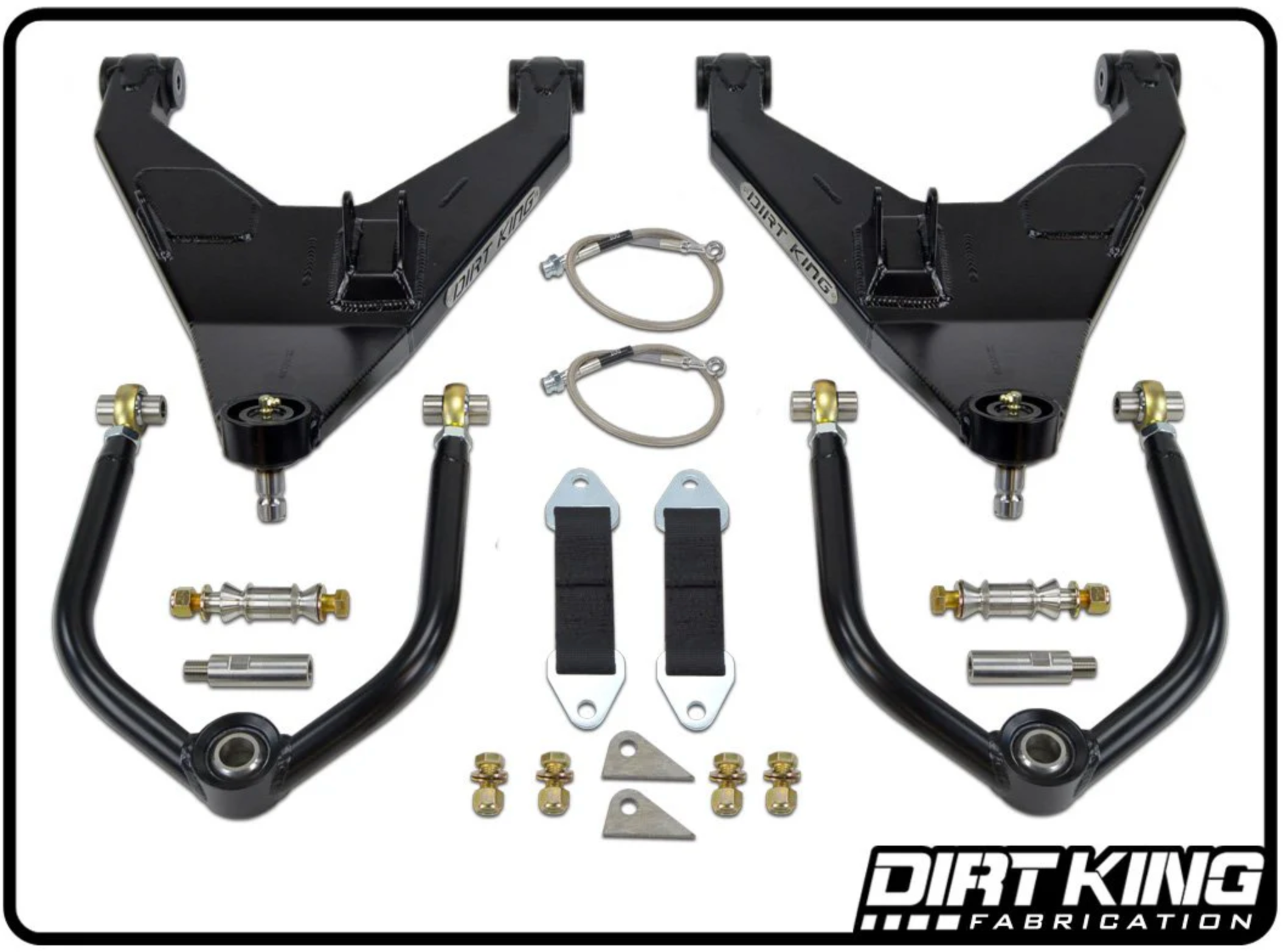

Included
